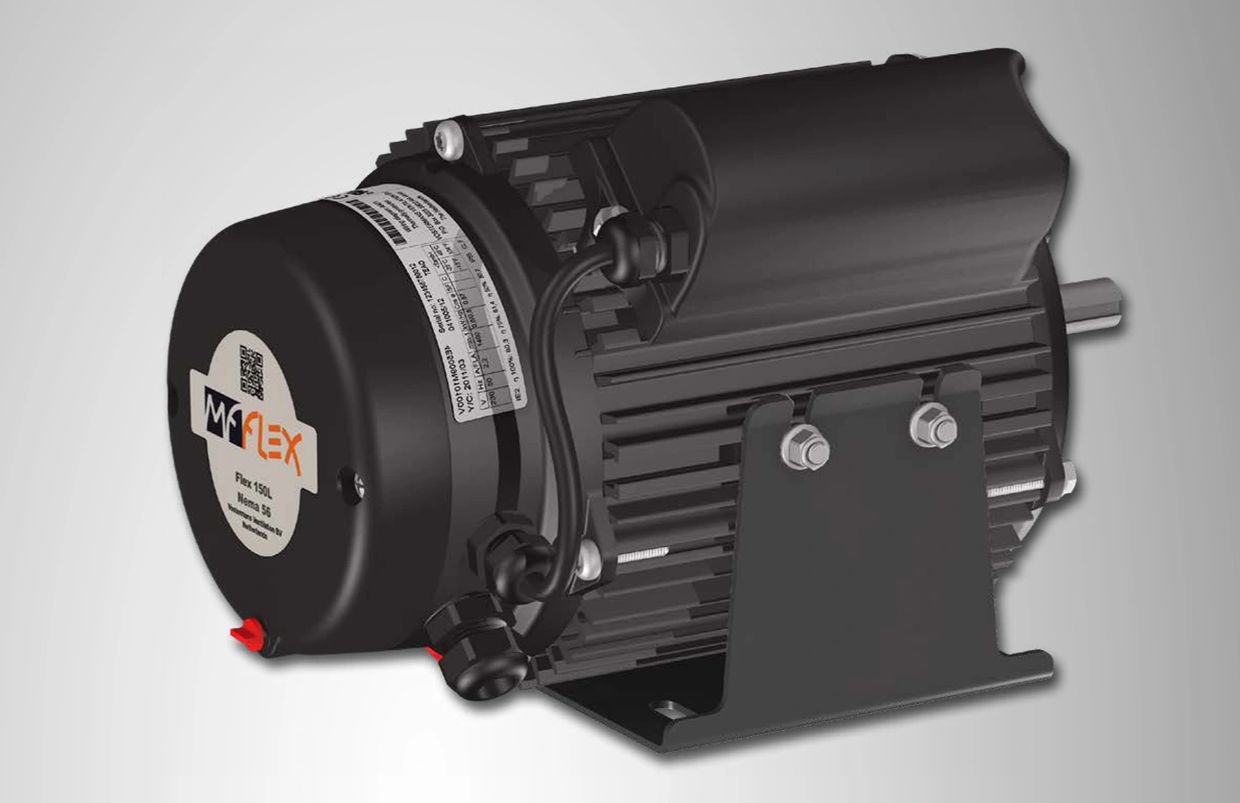

Vostermans MF Flex

The replacement motor for any fan

The Mf-Flex Universal Fan Motor is an extremely durable replacement motor for agricultural and industrial markets where reliability is key. Vostermans Ventilation products are worldwide well-known for their longevity in harsh environments and extreme reliability. Because of the standard NEMA mounting options, the fan motors are easily interchangeable. All Universal Fan Motors are based on the Totally Enclosed Air Over (TEAO) principle, and are developed and produced in the Netherlands. The 60Hz motors are UL Recognized.

Why choose this motor:

• Suitable for use in harsh environments • Extremely durable and reliable

• High energy efficiency

• Resistant to extreme corrosive environments

• Compatible and interchangeable with fans by standard NEMA measurements

• 3-year warranty

Optional available:

Why choose this motor:

• Available in 50Hz and 60Hz

• Motor performance: 1, 1.5 and 2 HP

• Standard built-in thermal protection for 1-phase, optional for 3-phase

• Various mounting supports: NEMA frame 48C, 56C or 56C face mounted

Features:

Applications:

• UL Recognition for 60Hz versions

• Water and dust resistant (IP55)

• Insulation Class F

• Only for horizontal mounting (contact our Vostermans support team for vertical mounting possibilities)

• Applicable for belt-driven fans

• Totally Enclosed Air Over (TEAO) motors

• Motor measurements according to NEMA

• 3-phase motors are frequency controllable

Applications:

• Agricultural: pigs, poultry and dairy

• Horticultural: greenhouse

• Industrial

• Belt drive and direct drive

• Exhaust and circulation fans
